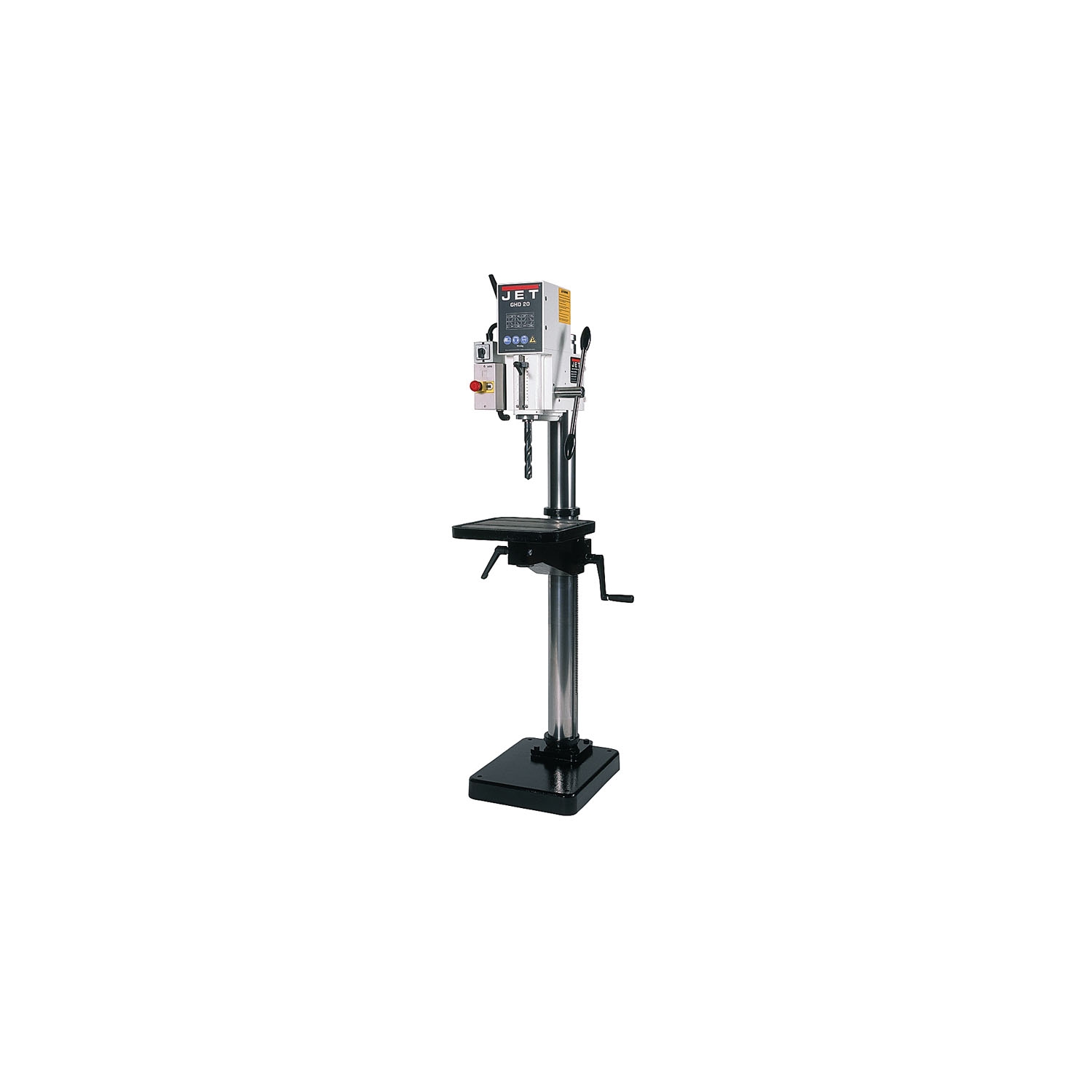

JET 354031, 20" Gear Head Drill Press with Power Feed J-A2608M
JET 354031, 20" Gear Head Drill Press with Power Feed J-A2608M
Email us for Best Pricing at
[email protected]
List Price: $8,359.00
Our Price:
$
6,999.00
You save $1,360.00!
Manufacturer PN:
354031
Availability:
Ships in 5-7 Days
Our Part Number:
354031
Qty:
Information:
Technical Specs
JET 354031, 20" Gear Head Drill Press with Power Feed J-A2608M
Item
Specification
Motor
1 - 1-1/2HP, 440/460VAC, 3ph
Number of Spindle speeds
8
Range of Spindle Speeds (RPM)
Low-130, 260, 420, 840; High-535, 1070, 1745, 3480
Spindle Taper
MT-3
Quill Diameter (in.)
2-3/8
Max Distance Spindle to Table ( in.)
35-5/8
T-Slots Number and Size (in.)
2 x 9/16
Work Table Weight Capacity (lbs.)
350
Column Diameter (in.)
3-15/16
Base Dimensions (LxWxH/ in.)
24 x 22
Drilling Capacity Cast Iron (in.)
1-3/8
Drilling Capacity Mild Steel (in.)
1-1/4
Tapping Capacity Cast Iron (in.)
5/8
Tapping Capacity Mild Steel (in.)
1/2
Quill Travel (in.)
5-1/8
Quill Travel w/ Powerfeed engaged (in.)
5-1/8
Quill Down feed Rates (IPR)
.004, .006, .009, .012
Table Size (in.)
15-3/4 x 19-3/4
Drills to Center of Circle (in)
20
Max Distance - Spindle to Table (in)
35-5/8
Quill Feed
Power
Spindle Travel (in.)
5-1/8
Number of Powerfeeds
4
Vertical Movement of Drill Head
8-5/8
Vertical Movement of Table (in.)
24-1/2
Table Dimensions
15-3/4 x 19-3/4
Web Description
J-A2608M-PF4 20"Gear Head Drill Press W/Powerfeed 440V, 3PH
Model Number
J-A2608M-PF4
Overall Dimensions
24 x 22 x 72
Height
30 inch
Width
22 inch
Length
66 inch
Extended Information
JET 354031, 20" Gear Head Drill Press with Power Feed J-A2608M
